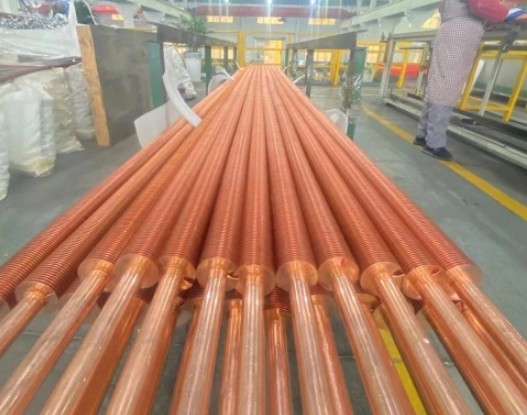

DELLOK Laser Welded Copper Finned Tube Copper Base Tube C12200

1 piece
MOQ
$10 - 1000 /Piece/Pieces
Price
DELLOK Laser Welded Copper Finned Tube Copper Base Tube C12200
Features Gallery Product Description Request A Quote
Features
Specifications
Application: Heat Exchanger/Condenser/Evaporator/Boiler
Certificate: ISO 9001/CE/PED
Fin Height: 2.5-6.0mm
Fin Pitch: 2.5-6.0mm
Fin Thickness: 0.15-0.35mm
Fin Type: Longitudinal/Helical
Length: Up To 12m
Material: Carbon Steel/Stainless Steel
Package: Wooden Case/Pallet/Carton
Surface Treatment: Pickling/Sand Blasting/Polishing
Testing: Mechanical Property/Hydrostatic/X-ray/Eddy Current
Tube OD: 19.05-114.3mm
Tube Thickness: 1.0-3.0mm
Welding Method: Laser Welding
High Light:

Laser Welded Copper Finned Tube

,

Copper Base Tube C12200

,

Longitudinal Copper Finned Tube

Basic Infomation
Place of Origin: China
Brand Name: Dellok Yonghui
Certification: ISO90001
Model Number: Laser Weld Fin Tube
Payment & Shipping Terms
Packaging Details: wooden box
Delivery Time: 1-3 weeks
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: TBD
Product Description

DELLOK Laser welded copper finned tube,copper base tube C12200





About Us



Dellok(YONGHUI Radiating Pipe Manufacturing Co.,Ltd) was established in 2002, which is located in Nanjing, China.We joined HARBIN AIR CONDITIONING CO., LTD. in 2022 and became the most professional industry manufacturer in China. After many years of development, the company now has 66 million yuan in fixed assets, more than 200 employees, and 33 technical staffs. We have 4 aluminum processing production lines, with the annual processing capacity of more than 20,000 tons; And we have 5 tube-drawing production lines; 47 fintube production lines, 1 imported production line from American with the brand of McElroy , with the annual production capacity of 12 million meters the above.

Quality is the theme of eternal pursuit of winner.






Five characteristics of laser welding finned tubes:

1: The thickness of the base tube can be 0.8-1.5 mm, and the thickness of the fin can be 0.3-1 mm, which greatly saves material costs compared to other processes.
2: High penetration rate, can prevent crevice corrosion, prolong service life, and reduce heat transfer resistance.
3: Break through the material limit and can use different materials for processing.
4: Easy secondary processing, can be directly coiled and bent.
5: The welding heat-affected zone is small, and the metallographic change is small, making it possible to process small diameter fin tubes.



DELLOK Laser Welded Copper Finned Tube Copper Base Tube C12200 0






Advantages of laser welding finned tube

a,The laser welding finned tube (finned tube) fin machine has a high degree of automation, and the welding of the fin to the tube and the winding of the tube are synchronized


b,100% welding rate, laser welding finned tube and fins are strong, the welding strength exceeds 600MPa.


c,The precision of laser welding tube finishing machine is up to 0.05mm


d,0 contact resistance, achieve high efficiency of heat transfer of spiral finned tube by laser welding.


e,Save production costs. The laser welding finned tube (finned tube) has a smaller fin spacing, less than 2.5mm. Compared with the high frequency welded spiral (spiral) finned tube, the heat transfer area is increased by about 50%, which makes the material cost Reduced, volume reduced Heat Exchanger.


d,The advantages over conventional MAG / HF welding are of decisive importance. The complete connection between the fin and the base tube brings excellent heat transfer, and the thermal performance of the Fin Tube is increased by 2.5 times. Continuous welding prevents the notch effect, thereby avoiding the formation of v-corrosion and cracks under the condition that the finned tube may swing. The heating of base metals during welding is low and the travel speed is up to 20m / min. Minimize the heat affected zone in the base tube. Therefore, it does not include the complete melting of the tube and the related metallurgical transformation of the parent metal.





Application

This kind of heat exchanger is widely used in industrial fields such as petrochemical industry, aviation, vehicles, power machinery, food, deep and low temperature, atomic energy and aerospace. For example, superheaters, economizers, air preheaters, condensers, deaerators, feedwater heaters, cooling towers, etc. in boiler thermal systems; hot blast stoves, air or gas preheaters in metal smelting systems, Waste heat boilers, etc.; evaporators, condensers, regenerators in refrigeration and low-temperature systems; heating and cooling equipment widely used in the petrochemical industry, sugar liquid evaporators and pulp evaporators in the sugar industry and paper industry, These are numerous examples of heat exchanger applications.

High frequency welded finned tube product display



Following dimensions and materials (steel and aluminum)
are available from stock and can be combined:

Laser welding finned tube made of Stainless Steel 304 316








Tube codififi cation



DELLOK Laser Welded Copper Finned Tube Copper Base Tube C12200 3



Product Description:

The fin tubes available with us covers Integrated Finned Tube of Copper (C10200, C12000, C12200),Cupronickel (C70600), Aluminum (1060) and Aluminum Alloy (AISI6063), Bimetallic Finned Tube such as Copper - Aluminum, Copper Alloy - Aluminum, Steel – Aluminum, Stainless Steel – Aluminum,Laser Welded Fin Tube using Stainless Steel and Titanium.

We have a wide and comprehensive range of products, and we can produce all the relevant types of products in the market.



Product Packaging:

We can package the products according to the customer's requirements to ensure the safe arrival of the products in all kinds of transportation scenarios. If you have special requirements on packaging, please contact us.

Finned tube packaging display








WHY CHOOSE US

  • Our Quality
    Our quality awareness stems from the roots of our being. Each product is produced as per customer specifications meeting or exceeding applicable codes and standards. Each product is inspected and related documents are maintained to ensure the compliance. Additional testing and Third Party Inspection Agency can be offered if required by customer for further assurance. We are always concentrated on improving the effectiveness of our Quality Management Systems.
  • Our Service



    Our service means getting the job done the way customer want it done. We always have the customer in our mind atall times. We realize that the customers, needs are different and we have the ability to satisfy those needs. Whether processing on customer-supplied materials or supplying a job completely turnkey, you can always count on us.
  • Our Efficiency
    We can work 24/ 7 to meet your needs. Our proprietary online quote system enables us to rapidly prepare the quotes and reply to you. Our shops can operate 24 hours a day by shifts to satisfy your urgent delivery time. We can also maintain emergency contacts anytime you need, no matter pre-sales or after-sales.
