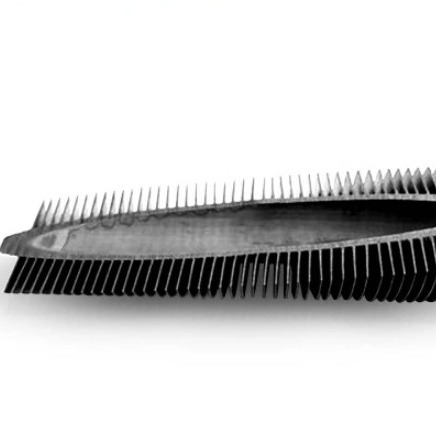

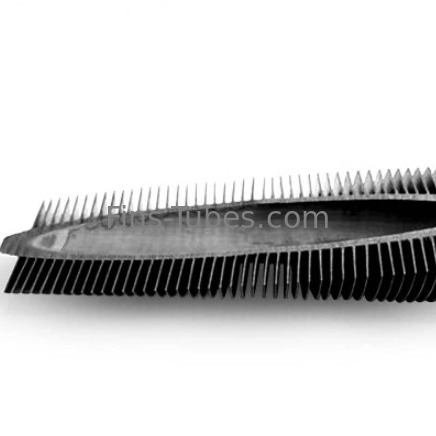

DELLOK Laser Welding Steel Fin Tube Coil Cooling Fins

1 piece
MOQ
$10 - 1000 /Piece/Pieces
Price
DELLOK Laser Welding Steel Fin Tube Coil Cooling Fins
Features Gallery Product Description Request A Quote
Features
Specifications
Application: Heat Exchanger
Fin Height: 2.5mm
Fin Pitch: 3.0mm
Fin Thickness: 0.25mm
Fin Type: Wavy Fin
Material: Stainless Steel
Tube End Connector: Threaded Connector
Tube End Treatment: Beveled End
Tube Length: 1000mm
Tube OD: 19.05mm
Tube Surface Treatment: Sand Blasting
Tube Type: Fin Tube
Tube Wall Thickness: 1.65mm
Welding Method: Laser Welding
Welding Quality: High Quality
High Light:

Welding Steel Fin Tube Coil

,

Laser Welding Steel Fin Tube

,

Laser Welding Cooling Fins

Basic Infomation
Place of Origin: China
Brand Name: Dellok Yonghui
Certification: ISO90001
Model Number: Laser Weld Fin Tube
Payment & Shipping Terms
Packaging Details: wooden box
Delivery Time: 1-3 weeks
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: TBD
Product Description

DELLOK Laser Welding Steel Fin Tube Cooling Fins





About Us



Dellok(YONGHUI Radiating Pipe Manufacturing Co.,Ltd) was established in 2002, which is located in Nanjing, China.We joined HARBIN AIR CONDITIONING CO., LTD. in 2022 and became the most professional industry manufacturer in China. After many years of development, the company now has 66 million yuan in fixed assets, more than 200 employees, and 33 technical staffs. We have 4 aluminum processing production lines, with the annual processing capacity of more than 20,000 tons; And we have 5 tube-drawing production lines; 47 fintube production lines, 1 imported production line from American with the brand of McElroy , with the annual production capacity of 12 million meters the above.

Quality is the theme of eternal pursuit of winner.






Laser Welded Finned Tubes

Laser Welded Finned Tubes are manufactured by helically winding strip onto tubes. The heat transfer fins are attached to the surface of tubing in a unique laser process within a protected atmosphere. This method produces high quality finned tubes in a process  and tube material can be selected according to specific design requirements. The small heat-affected zone in connection with thin weld seams avoid any deformation of the material. This results in a high stability of shape and a great accuracy of size of the welded finned tube.



DELLOK Laser Welding Steel Fin Tube Coil Cooling Fins 0






Advantages of laser welding finned tube

Avoidance of gap corrosion
➔ Longer lifetime
Easy to clean and sterilize
➔ Laser fin meets the requirements:
➔ food & beverage
➔ pharmaceutical industry
Optimal heat transfer, reduced material
➔ Smaller footprint of heat exchangers
➔ Reduced investment costs
Matching the challenges of your process
➔ Reduced downtime
➔ Reduced O&M costs
➔ Reduced investment costs
Tubes can be bended in the finned section
➔ Quick and easy to process
➔ Reduced bypass flow
Tubes are nearly unaffected by the welding process
➔ Small tube walls are possible
➔ Reduced footprint and weight of heat exchangers
➔ Less complications fabrication
➔ Proven design



DELLOK Laser Welding Steel Fin Tube Coil Cooling Fins 1






Application

Power Plants
a,Cooling towers or cooling water recooling plants with dry, dry / wet or wet operation
b,Flue gas cooling and heating in flue gas desulfurisation scrubbers (FGD) and nitrogen removing plants (DENOX)
Chemical Industry
a,Heat exchangers of all kinds for cooling and heating of liquids and gases
b,Heat exchangers tor nitric acid (HNO3) plants, e.g. for the fertilizer industry
Heat Recovery Plants
a,Flue gas coolers
Heating Industry
a,Primary heat exchangers in gas heating boilers
b,Secondary heat exchangers for domestic water heating in condensing boilers
General Engineering
a,Heat exchangers for gas cooling of industrial furnaces
b,Heat exchangers for tank heating
c,Oil coolers for vacuum plants, ship plants, pumps etc.
d,Heat exchangers for oil preheating



DELLOK Laser Welding Steel Fin Tube Coil Cooling Fins 2



Following dimensions and materials (steel and aluminum)

are available from stock and can be combined:

Laser welding finned tube made of Stainless Steel 304 316

air conditioner Laser Welded Finned Tubes





Product Description:

The fin tubes available with us covers Integrated Finned Tube of Copper (C10200, C12000, C12200),Cupronickel (C70600), Aluminum (1060) and Aluminum Alloy (AISI6063), Bimetallic Finned Tube such as Copper - Aluminum, Copper Alloy - Aluminum, Steel – Aluminum, Stainless Steel – Aluminum,Laser Welded Fin Tube using Stainless Steel and Titanium.

We have a wide and comprehensive range of products, and we can produce all the relevant types of products in the market.

As shown in the figure below:

DELLOK Laser Welding Steel Fin Tube Coil Cooling Fins 5





WHY CHOOSE US

  • Our Quality
    Our quality awareness stems from the roots of our being. Each product is produced as per customer specifications meeting or exceeding applicable codes and standards. Each product is inspected and related documents are maintained to ensure the compliance. Additional testing and Third Party Inspection Agency can be offered if required by customer for further assurance. We are always concentrated on improving the effectiveness of our Quality Management Systems.
  • Our Service
    Our service means getting the job done the way customer want it done. We always have the customer in our mind atall times. We realize that the customers, needs are different and we have the ability to satisfy those needs. Whether processing on customer-supplied materials or supplying a job completely turnkey, you can always count on us.
  • Our Efficiency
    We can work 24/ 7 to meet your needs. Our proprietary online quote system enables us to rapidly prepare the quotes and reply to you. Our shops can operate 24 hours a day by shifts to satisfy your urgent delivery time. We can also maintain emergency contacts anytime you need, no matter pre-sales or after-sales.
