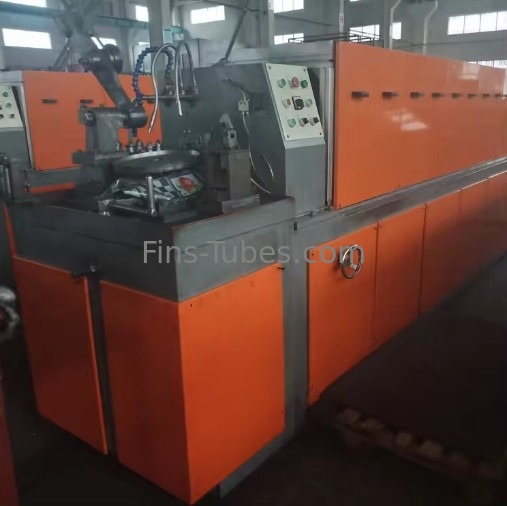

Customizable DELLOK Spiral Fin Tube Tube Finning Machine for Optimal Results

1 SET
MOQ
usd+50000+set
Price
Customizable DELLOK Spiral Fin Tube Tube Finning Machine for Optimal Results
Features Gallery Product Description Request A Quote
Features
Specifications
High Light:

Optimal Results Fin Tube Machine

,

Customizable Fin Tube Machine

,

DELLOK Fin Tube Machine

Basic Infomation
Place of Origin: China
Brand Name: DELLOK Yonghui
Certification: CE
Payment & Shipping Terms
Packaging Details: Packing with Plastic Mat, Waterproof Paper , drying agent/desiccant and plastic cap . 1) For light ,short fin tubes ,we use exporting wooden case 2)For heavy, long fin tubes ,we use iron frame wooden case 3)On the top of the package ,we weld more square st
Delivery Time: 1-3 weeks
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 1000
Product Description

DELLOK Steel spiral finned tubes high-frequency welded finned tubes seamless finned heat dissipation tubes



About Us



DELLOK (YONGHUI RADIATING PIPE MANUFACTURING CO.,LTD.) was established in 2002, which is located in Jiangsu, China. After many years of development, the company now has 66 million yuan in fixed assets, more than 200 employees, and 33 technical staffs. We have 4 aluminum processing production lines, with the annual processing capacity of more than 20,000 tons; And we have 5 tube-drawing production lines; 47 fintube production lines, 1 imported production line from American with the brand of McElroy , with the annual production capacity of 12 million meters the above. Quality is the theme of eternal pursuit of winner -Production workshop- Meticulous works, standardized management system and systematic quality assurance are Dellok(YONGHUI)'s best commitment to quality. In Dellok(YONGHUI), the quality control is not only the detection of the final process, but throughout the entire production process. We implement a set of quality control and assurance systems. Each batch of pipes is sampled and tested, and records are kept as a quality guarantee for the final product.



Product Description
THERMAL SOLUTIONS----FINNED TUBES
Customizable DELLOK Spiral Fin Tube Tube Finning Machine for Optimal Results 0

About Finned Tubes

A fin tube is a tube that has lots of fins around the outside surface. These fins act as a filter and a mechanism to transfer heat from the material inside the tube to the outside space or vice versa. Fin tubes are used in applications that require a transfer of heat from a hot fluid to a colder fluid through the tube's wall.
♦ Welded finned tubes
♦ Extruded finned tubes
♦ Welded helical solid finned tubes
♦ Welded serrated finned tubes
♦ Welded helical serrated finned tubes

Our Advantages

Professional facility to produce in excess of 100 tons of quality finned tube per month.
♦ Over 20 years experience
♦ Out standing quality
♦ Three different finning process
♦ Two fully automatical H.F Induction Welding Lines
♦ More than 15 finning machines
♦ Different coiling and bending process
♦ Highly skilled technicians
♦ Numerous domestic and overseas customers
Material Combinations
Customizable DELLOK Spiral Fin Tube Tube Finning Machine for Optimal Results 1
Dimensions
Items Description
Place of Origin Jiangsu,China
Machine Type Fin Tube Machine
Video outgoing-inspection Provided
Machinery Test Report Provided
Marketing Type New Product 2020
Warranty of core components 1 year
Core Components Gear box
Warranty 1 Year
Key Selling Points High Productivity
Applicable Industries Fin Tube Machine
Showroom Location None
Brand Name Dellok Yonghui
After-sales Service Provided No overseas service provided
Mainframe shape size 4950*900*1500mm
External dimensions 580*900*1000mm
Working wheelbase 1000mm
Main shaft speed 800r/min
Our factory more than 35,000 square meters
Our workers more than 300 workers
TOP 1 fin tube supplier including 60 machines
Our daily output up to 40,000 Meters
Quality Control
Customizable DELLOK Spiral Fin Tube Tube Finning Machine for Optimal Results 3
Customizable DELLOK Spiral Fin Tube Tube Finning Machine for Optimal Results 4
Customizable DELLOK Spiral Fin Tube Tube Finning Machine for Optimal Results 5
Ordering and Delivery
For a given pipe or tube size, the desired heat transfer surface area per unit length of tube can be obtained by specifying the appropriate fin height, fin thickness and number of fins per inch.
If the whole transfer surface area of the finned tube is A and the transfer surface area of the tube is A0, then nominal the ratio A/A0 should be 5 to 12.
Packing
Customizable DELLOK Spiral Fin Tube Tube Finning Machine for Optimal Results 6
Customizable DELLOK Spiral Fin Tube Tube Finning Machine for Optimal Results 7
Customizable DELLOK Spiral Fin Tube Tube Finning Machine for Optimal Results 8
Customizable DELLOK Spiral Fin Tube Tube Finning Machine for Optimal Results 9
Customizable DELLOK Spiral Fin Tube Tube Finning Machine for Optimal Results 10



    Fin Height (inches) Tube (inches) FPI Fin Material Strip Width (inches) Fin Stock Thickness (inches) Fin Type Fin OD. Estimated Weight of Fin Material per Foot of Tube (Lbs)
  1 0.625 1 9 Aluminum .713 .016 Wrap On (L-Fin) 2.25 0.39
  2 0.625 1 10 Aluminum .702 .016 Wrap On (L-Fin) 2.25 0.42
  3 0.625 1 11 Aluminum .693 .016 Wrap On (L-Fin) 2.25 0.46
  4 0.625 1.25 9 Aluminum .716 .014 Wrap On (L-Fin) 2.50 0.43
  5 0.625 1.25 10 Aluminum .705 .014 Wrap On (L-Fin) 2.50 0.47
  6 0.625 1.25 11 Aluminum .696 .014 Wrap On (L-Fin) 2.50 0.51
  7 0.625 1.5 9 Aluminum .718 .013 Wrap On (L-Fin) 2.75 0.48
  8 0.625 1.5 10 Aluminum .706 .013 Wrap On (L-Fin) 2.75 0.52
  9 0.625 1.5 11 Aluminum .697 .013 Wrap On (L-Fin) 2.75 0.56
  10 0.625 2 9 Aluminum .719 .012 Wrap On (L-Fin) 3.25 0.59
  11 0.625 2 10 Aluminum .708 .012 Wrap On (L-Fin) 3.25 0.64
  12 0.625 2 11 Aluminum .699 .012 Wrap On (L-Fin) 3.25 0.70

  13 0.625 1 9 Aluminum .637 .016 Imbedded (G-Fin) 2.25 0.35
  14 0.625 1 10 Aluminum .637 .016 Imbedded (G-Fin) 2.25 0.38
  15 0.625 1 11 Aluminum .637 .016 Imbedded (G-Fin) 2.25 0.42
  16 0.625 1.25 9 Aluminum .637 .014 Imbedded (G-Fin) 2.50 0.38
  17 0.625 1.25 10 Aluminum .637 .014 Imbedded (G-Fin) 2.50 0.42
  18 0.625 1.25 11 Aluminum .637 .014 Imbedded (G-Fin) 2.50 0.46
  19 0.625 1.5 9 Aluminum .637 .013 Imbedded (G-Fin) 2.75 0.42
  20 0.625 1.5 10 Aluminum .637 .013 Imbedded (G-Fin) 2.75 0.47
  21 0.625 1.5 11 Aluminum .637 .013 Imbedded (G-Fin) 2.75 0.52
  22 0.625 2 9 Aluminum .637 .012 Imbedded (G-Fin) 3.25 0.52
  23 0.625 2 10 Aluminum .637 .012 Imbedded (G-Fin) 3.25 0.58
  24 0.625 2 11 Aluminum .637 .012 Imbedded (G-Fin) 3.25 0.63

  25 0.625 1 9 Aluminum .727 .016 Wrap On Knurled (KL-Fin) 2.25 0.39
  26 0.625 1 10 Aluminum .713 .016 Wrap On Knurled (KL-Fin) 2.25 0.43
  27 0.625 1 11 Aluminum .702 .016 Wrap On Knurled (KL-Fin) 2.25 0.47
  28 0.625 1.25 9 Aluminum .730 .014 Wrap On Knurled (KL-Fin) 2.50 0.43
  29 0.625 1.25 10 Aluminum .716 .014 Wrap On Knurled (KL-Fin) 2.50 0.47
  30 0.625 1.25 11 Aluminum .705 .014 Wrap On Knurled (KL-Fin) 2.50 0.51
  31 0.625 1.5 9 Aluminum .731 .013 Wrap On Knurled (KL-Fin) 2.75 0.48
  32 0.625 1.5 10 Aluminum .718 .013 Wrap On Knurled (KL-Fin) 2.75 0.53
  33 0.625 1.5 11 Aluminum .706 .013 Wrap On Knurled (KL-Fin) 2.75 0.57
  34 0.625 2 9 Aluminum .733 .012 Wrap On Knurled (KL-Fin) 3.25 0.60
  35 0.625 2 10 Aluminum .719 .012 Wrap On Knurled (KL-Fin) 3.25 0.65
  36 0.625 2 11 Aluminum .708 .012 Wrap On Knurled (KL-Fin) 3.25 0.70

  37 0.625 1 9 Aluminum .810 .016 Overlapped Footed Fin (LL-Fin) 2.25 0.44
  38 0.625 1 10 Aluminum .788 .016 Overlapped Footed Fin (LL-Fin) 2.25 0.48
  39 0.625 1 11 Aluminum .770 .016 Overlapped Footed Fin (LL-Fin) 2.25 0.51
  40 0.625 1.25 9 Aluminum .815 .014 Overlapped Footed Fin (LL-Fin) 2.50 0.48
  41 0.625 1.25 10 Aluminum .793 .014 Overlapped Footed Fin (LL-Fin) 2.50 0.52
  42 0.625 1.25 11 Aluminum .775 .014 Overlapped Footed Fin (LL-Fin) 2.50 0.56
  43 0.625 1.5 9 Aluminum .817 .013 Overlapped Footed Fin (LL-Fin) 2.75 0.54
  44 0.625 1.5 10 Aluminum .795 .013 Overlapped Footed Fin (LL-Fin) 2.75 0.58
  45 0.625 1.5 11 Aluminum .777 .013 Overlapped Footed Fin (LL-Fin) 2.75 0.63
  46 0.625 2 9 Aluminum .820 .012 Overlapped Footed Fin (LL-Fin) 3.25 0.67
  47 0.625 2 10 Aluminum .797 .012 Overlapped Footed Fin (LL-Fin) 3.25 0.72
  48 0.625 2 11 Aluminum .779 .012 Overlapped Footed Fin (LL-Fin) 3.25 0.78

  49 0.625 1 9 Aluminum .838 .016 Knurled Overlapped Footed Fin (KLL-Fin) 2.25 0.45
  50 0.625 1 10 Aluminum .810 .016 Knurled Overlapped Footed Fin (KLL-Fin) 2.25 0.49
  51 0.625 1 11 Aluminum .788 .016 Knurled Overlapped Footed Fin (KLL-Fin) 2.25 0.52
  52 0.625 1.25 9 Aluminum .843 .014 Knurled Overlapped Footed Fin (KLL-Fin) 2.50 0.50
  53 0.625 1.25 10 Aluminum .815 .014 Knurled Overlapped Footed Fin (KLL-Fin) 2.50 0.54
  54 0.625 1.25 11 Aluminum .793 .014 Knurled Overlapped Footed Fin (KLL-Fin) 2.50 0.58
  55 0.625 1.5 9 Aluminum .845 .013 Knurled Overlapped Footed Fin (KLL-Fin) 2.75 0.56
  56 0.625 1.5 10 Aluminum .817 .013 Knurled Overlapped Footed Fin (KLL-Fin) 2.75 0.60
  57 0.625 1.5 11 Aluminum .795 .013 Knurled Overlapped Footed Fin (KLL-Fin) 2.75 0.64
  58 0.625 2 9 Aluminum .847 .012 Knurled Overlapped Footed Fin (KLL-Fin) 3.25 0.69
  59 0.625 2 10 Aluminum .820 .012 Knurled Overlapped Footed Fin (KLL-Fin) 3.25 0.74
  60 0.625 2 11 Aluminum .797 .012 Knurled Overlapped Footed Fin (KLL-Fin) 3.25 0.79

  61 0.750 1.5 9 Aluminum .841 .014 Wrap On (L-Fin) 3.00 0.60
  62 0.750 1.5 10 Aluminum .830 .014 Wrap On (L-Fin) 3.00 0.66
  63 0.750 1.5 11 Aluminum .821 .014 Wrap On (L-Fin) 3.00 0.71

  64 0.750 1.5 9 Aluminum .637 .014 Imbedded (G-Fin) 3.00 0.45
  65 0.750 1.5 10 Aluminum .637 .014 Imbedded (G-Fin) 3.00 0.50
  66 0.750 1.5 11 Aluminum .637 .014 Imbedded (G-Fin) 3.00 0.55

  67 0.750 1.5 9 Aluminum .855 .014 Wrap On Knurled (KL-Fin) 3.00 0.61
  68 0.750 1.5 10 Aluminum .841 .014 Wrap On Knurled (KL-Fin) 3.00 0.67
  69 0.750 1.5 11 Aluminum .830 .014 Wrap On Knurled (KL-Fin) 3.00 0.72

  70 0.750 1.5 9 Aluminum .940 .014 Overlapped Footed Fin (LL-Fin) 3.00 0.67
  71 0.750 1.5 10 Aluminum .918 .014 Overlapped Footed Fin (LL-Fin) 3.00 0.73
  72 0.750 1.5 11 Aluminum .900 .014 Overlapped Footed Fin (LL-Fin) 3.00 0.78

  73 0.750 1.5 9 Aluminum .968 .014 Knurled Overlapped Footed Fin (KLL-Fin) 3.00 0.69
  74 0.750 1.5 10 Aluminum .940 .014 Knurled Overlapped Footed Fin (KLL-Fin) 3.00 0.74
  75 0.750 1.5 11 Aluminum .918 .014 Knurled Overlapped Footed Fin (KLL-Fin) 3.00 0.80

  Total 75 Different Fintube Combinations

FAQ



Q: What is your the lead time for production?

A: Generally Sample needs 1-3 days, mass production needs 15-30 days, also depends on your request.

Q: What is the warranty for your products?

A :We provide one year warranty for the products.

Q: What payment terms do you accept?

A :Trade assurance,TT,Western Union.

Q: What are the modes of transportation of machines?

A: Air freight, sea freight express delivery, etc. We will choose the most suitable transportation method according to your requirements.
